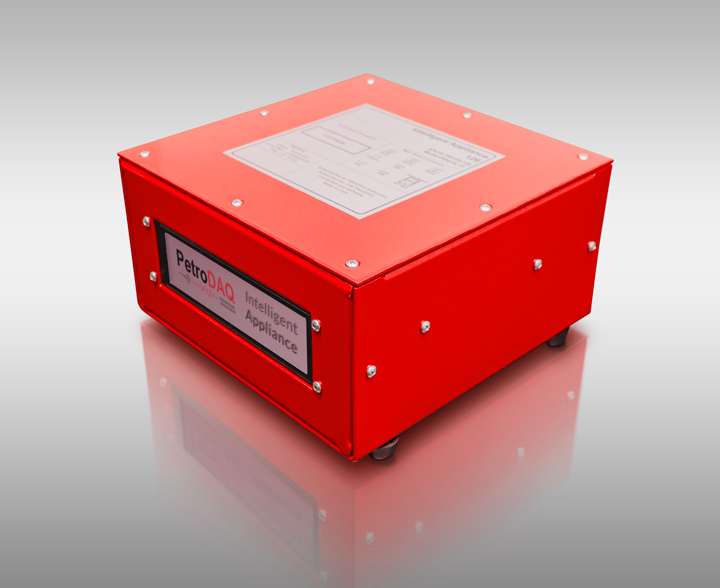

Intelligent Appliance

PetroDAQ Intelligent Appliance™ is the industry's most versatile solution for the capture of analog and digital data for real time drilling data analysis. It is a single-purpose device providing protocol conversion from any protocol to any other protocol. The Intelligent Appliance is a rugged, off-the-shelf solution built for the oilfield that is quick to implement, affordable and allows your personnel to focus on operations.

The Intelligent Appliance simplifies the administration of contractor data input with advanced features:

Embedded operating system for high performance and system security
Minimal maintenance required
Remote management using PetroDAS Remote Control

Supported Format Conversions

Each PetroDAQ Intelligent Appliance is built and pre-configured from the factory to fully support the input and output formats implemented in our PetroDAS data aggregation solution. Contractor specific formats are also fully supported. These specific WITS variations include BHI lithologies, Pason lagged depth channels. In addition, the native proprietary formats are supported for SLB ID³ and RigServ.

The Intelligent Appliance can convert WITS Input from below systems to WITSML 1.3.1.1 and WITSML 1.4.1:

Protocol	Input	Output

WITS Level 0
WITS from Canrig RigWatch
WITS from Schlumberger ID3
WITS from Pason
WITS from RigSense
WITS from VDX
WITS from MD/Totco RigSense
WITS with Pason handshaking and gas depth on different records
WITS from DigiDrill & Scientific Drilling trajectory with repeated survey stations
Geoservices WITSML 1.0 lithologies embedded into the WITS Stream
WITS from C-Link
WITS from DrillMech
WITS from InfoDrill
WITS from Petron
WITS from Rig Minder
WITS from RigWatch
WITS from SZJ-2

The following table shows the most common input to output conversions.

Input	Output	Example use

WITS Level 0	WITSML 1.3.1.1 / WITSML 1.4.1	Implement WITSML data delivery to your customer without expensive software development
ModBus	WITS 0	ModBus to WITS converter for integration of ModBus enabled sensors and PLCs into drilling system
FracPro	WITSML	Integrate your frac'ing data into your drilling corporate historian
WITS Level 0	L3 AR HVR-03 BlackBox	Safely store drilling and safety related parameters in black boxes, for secure storage and post-incident analysis of accident related information
Growing LAS	WITS	Real-time conversion of wireline LAS files into WITS for integration to drilling systems
WITSML time logs	OPC-DA	Transmission of real-time WITSML data into OPC-DA servers
WITSML time or depth logs	OPC-HDA	Transmission of real-time and historical WITSML data into OPC-HDA servers

Many other conversion are available. Please contact us with your specific requirements.

Versions

The PetroDAQ Intelligent Appliance is offered in three versions: base, standard, and extended.

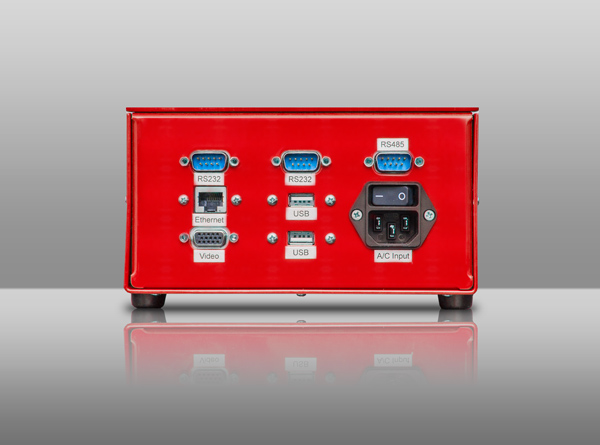

	Base	Standard	Extended

Serial Port RS-232	1	1	2
Ethernet RJ-45	1	1	1
Storage	4Gb	8Gb	16Gb
VGA Video Port	-	Optional	Included
USB Ports	-	Optional	2
Analog Inputs	-	Optional, up to 4	Optional, up to 4
Software	PetroDAS with fixed input / output mapping	PetroDAS with configurable I/O	PetroDAS with configurable I/O

PetroDAQ hardware solutions are available for rental, leasing, and sale. PetroDAQ Hardware is available bundled as part of our Industry Specific Solutions, or as standalone products.

If you would like to request more information on this product, and for pricing quotation, use our Contact Us Form.
